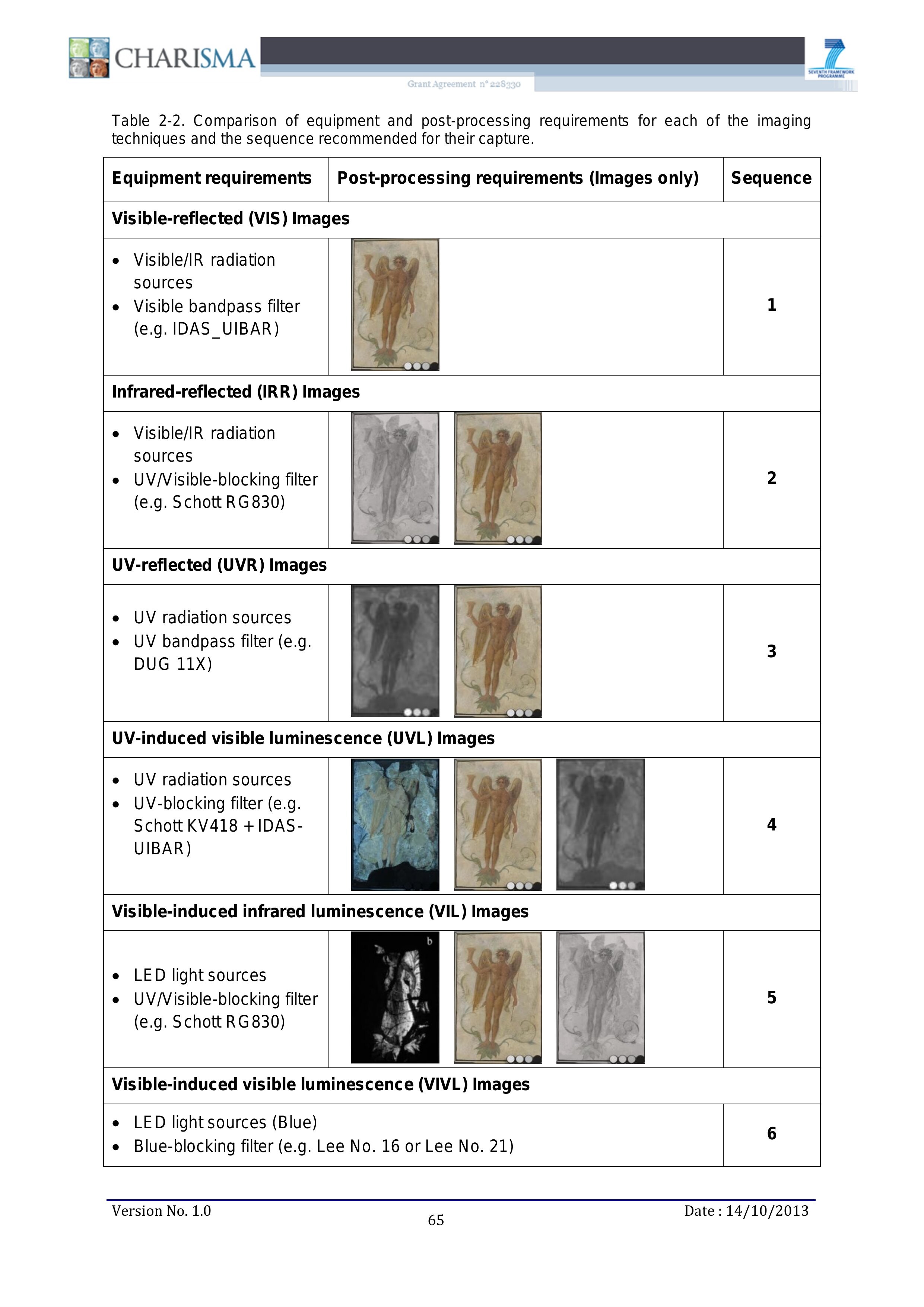

CHARISM A BI 7 Table 2-2. Comparison of eguipment and post-processing reguirements for each of the imaging technigues and the seguence recommended for their capture. Equipment requirements | Post-processing requirements (Images only) Sequence Visible-reflected (VIS) Images e Visible/IR radiation sources e Visible bandpass filter (e.g. IDAS_UIBAR) Infrared-reflected (IRR) Images e Visible/IR radiation sources e UV/Visible-blocking filter (e.g. Schott RG 830) UV-reflected (UVR) Images e UV radiation sources e UV bandpass filter (e.g. DUG 11X) UV-induced visible luminescence (UVL) Images e UV radiation sources | e UV-blocking filter (e.g. I, Schott KV418 +IDASUIBAR) Visible-induced infrared luminescence (VIL) Images e LED light sources e UV/Visible-blocking filter (e.g. Schott RG 830) Visible-induced visible luminescence (VIVL) Images e LED light sources (Blue) e Blue-blocking filter (e.g. Lee No. 16 or Lee No. 21) Version No. 1.0 65 Date : 14/10/2013
