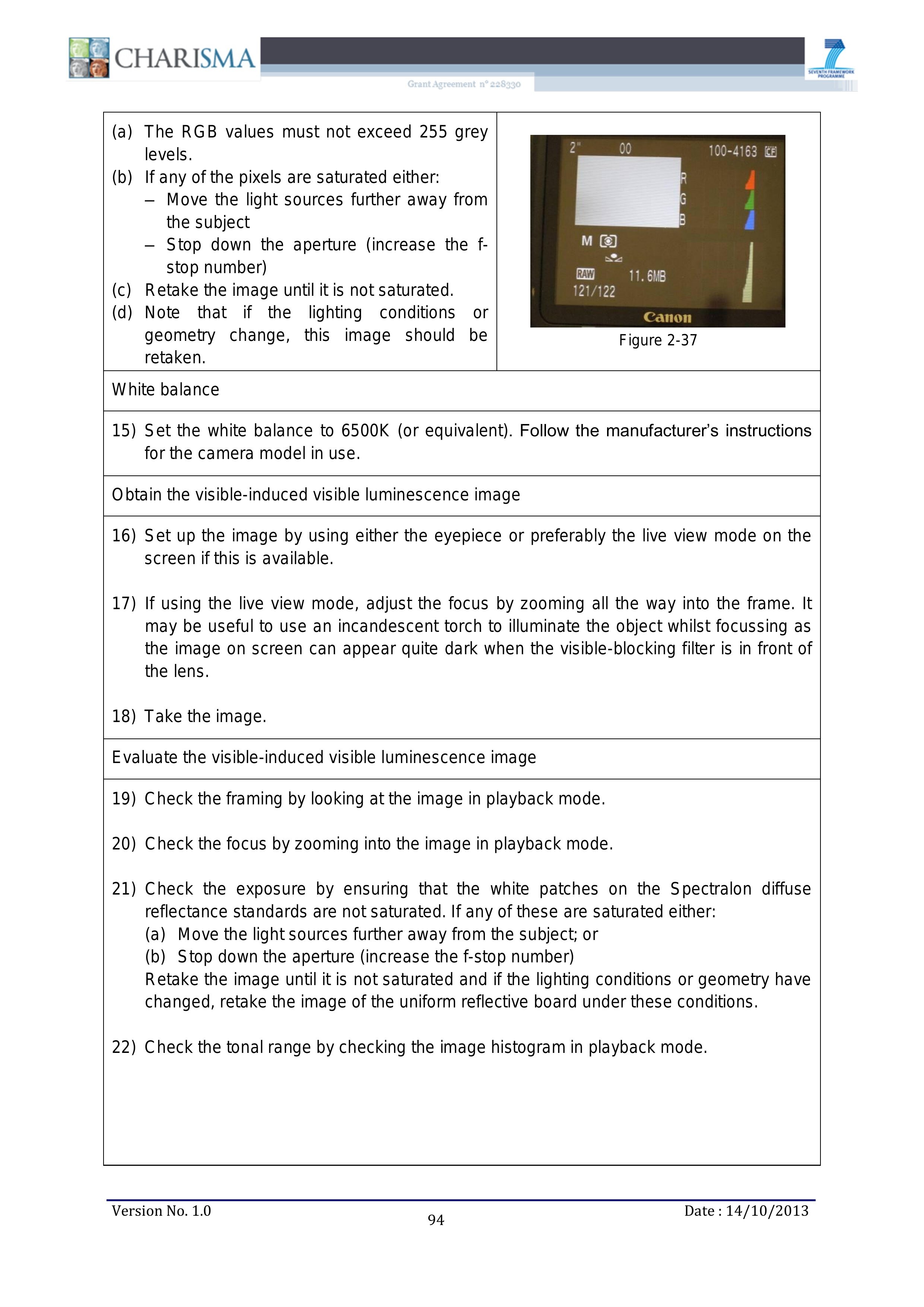

(a) The RGB values must not exceed 255 grey levels. (b) If any of the pixels are saturated either: — Move the light sources further away from the subject — Stop down the aperture (increase the f- M 66) stop number) = 11.98 (c) Retake the image until it is not saturated. 121/122 (d) Note that if the lighting conditions or geometry change, this image should be Figure 2-37 retaken. White balance 15) Set the white balance to 6500K (or equivalent). Follow the manufacturers instructions for the camera model in use. Obtain the visible-induced visible luminescence image 16) Set up the image by using either the eyepiece or preferably the live view mode on the screen if this is available. 17) If using the live view mode, adjust the focus by zooming all the way into the frame. It may be useful to use an incandescent torch to illuminate the object whilst focussing as the image on screen can appear quite dark when the visible-blocking filter is in front of the lens. 18) Take the image. Evaluate the visible-induced visible luminescence image 19) Check the framing by looking at the image in playback mode. 20) Check the focus by zooming into the image in playback mode. 21) Check the exposure by ensuring that the white patches on the Spectralon diffuse reflectance standards are not saturated. If any of these are saturated either: (a) Move the light sources further away from the subject; or (b) Stop down the aperture (increase the f-stop number) Retake the image until it is not saturated and if the lighting conditions or geometry have changed, retake the image of the uniform reflective board under these conditions. 22) Check the tonal range by checking the image histogram in playback mode. Version No. 1.0 94 Date : 14/10/2013
