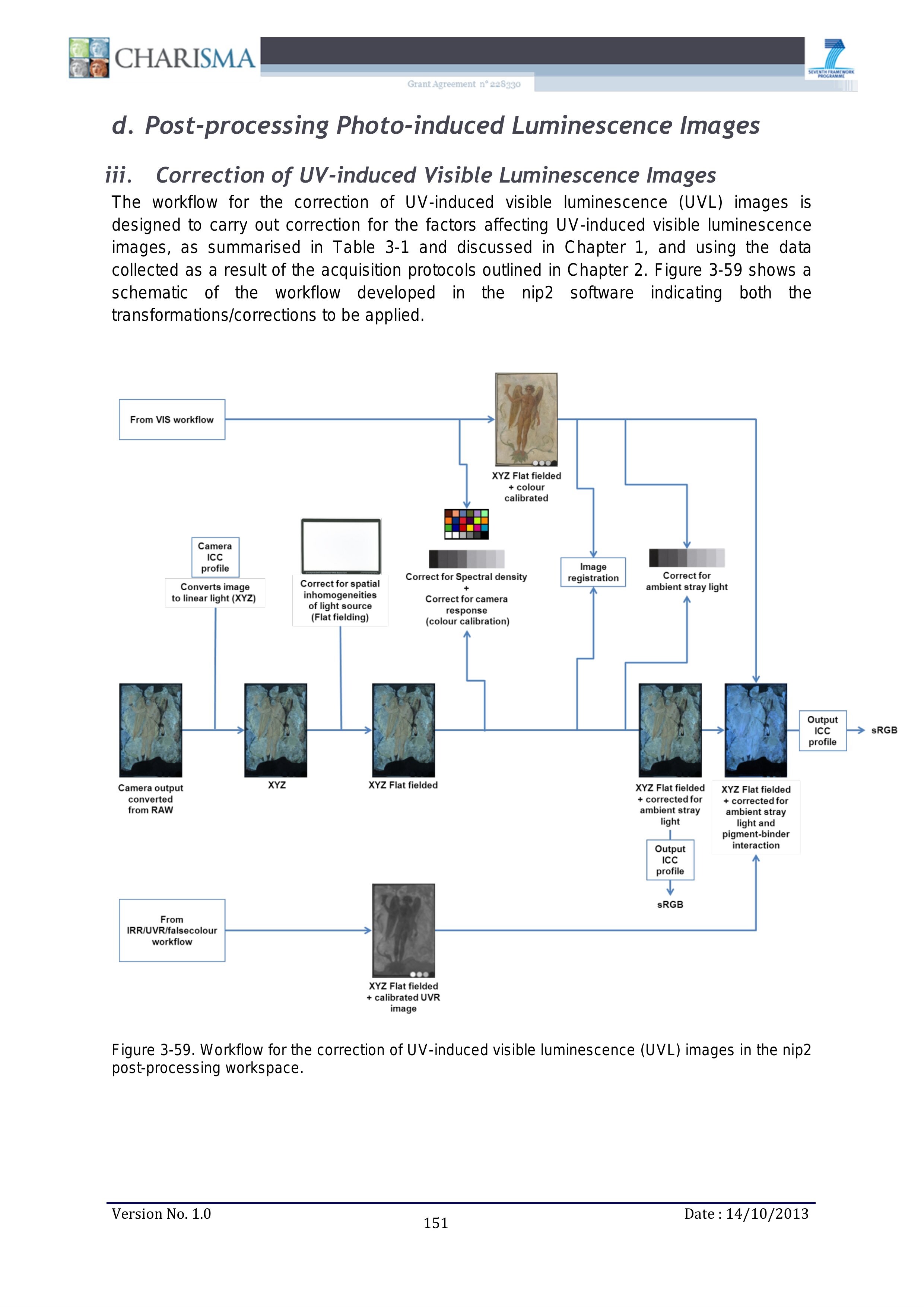

Bc BR 7 d. Post-processing Photo-induced Luminescence Images iii. Correction of UV-induced Visible Luminescence Images The workflow for the correction of UV-induced visible luminescence (UVL) images is designed to carry out correction for the factors affecting UV-induced visible luminescence images, aS Summarised in Table 3-1 and discussed in Chapter 1, and using the data collected as a result of the acquisition protocols outlined in Chapter 2. Figure 3-59 shows a schematic of the workflow developed in the nip2 software indicating both the transformations/corrections to be applied. From VIS workflow XYZ Flat fielded + colour calibrated Camera v profile . Image c Correct for spatial Correct for Spectral density registration ha orrect for h onverts image 78 + 7% ambient stray light to linear light (XYZ) inhomogeneities Correct for camera of light source response (Flat fielding) (colour calibration) Output ICC |} > sRGB profile Camera output XYZ XYZ Flat fielded XYZ Flat fielded xyz Flat fielded converted + corrected for + corrected for from RAW ambient stray ambient stray light light and | pigment-binder Output interaction icc profile sRGB From IRR/UVR/fal i > workflow XYZ Flat fielded + calibrated UVR image Figure 3-59. Workflow for the correction of UV-induced visible luminescence (UVL) images in the nip2 post-processing workspace. Version No. 1.0 151 Date : 14/10/2013
