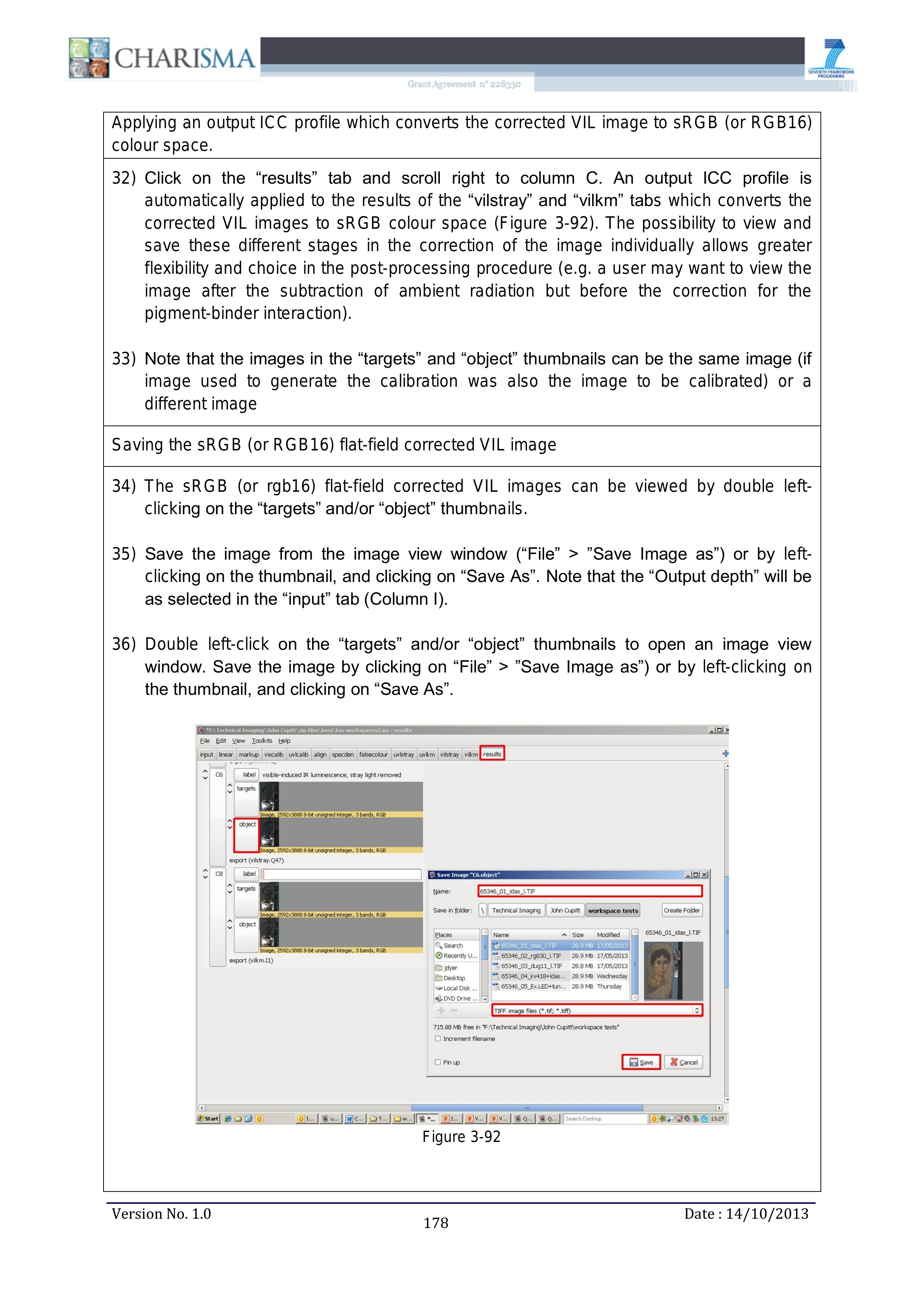

CHARISM A BR; 7 Applying an output ICC profile which converts the corrected VIL image to SRGB (or RGB16) colour space. 32) Click on the “results” tab and scroll right to column C. An output ICC profile is automatically applied to the results of the “vilstray” and “vilkm” tabs which converts the corrected VIL images to sRGB colour space (Figure 3-92). The possibility to view and save these different stages in the correction of the image individually allows greater flexibility and choice in the post-processing procedure (e.g. a user may want to view the image after the subtraction of ambient radiation but before the correction for the pigment-binder interaction). 33) Note that the images in the “targets” and “object” thumbnails can be the same image (if image used to generate the calibration was also the image to be calibrated) or a different image Saving the sRGB (or RGB16) flat-field corrected VIL image 34) The sRGB (or rgb16) flat-field corrected VIL images can be viewed by double leftclicking on the “targets” and/or “object” thumbnails. 35) Save the image from the image view window (“File” > "Save Image as") or by leftclicking on the thumbnail, and clicking on “Save As”. Note that the “Output depth” will be as selected in the “input” tab (Column 1). 36) Double left-click on the “targets” and/or “object” thumbnails to open an image view window. Save the image by clicking on “File” > "Save Image as’) or by left-clicking on the thumbnail, and clicking on “Save As”. {3 *F:\ Technical Imaging| John Cupitt\zip files\bm4\bm-workspaces2.ws - results = =/5)> File Edit View Tookits Help input linear markup viscalib uvicalib align specden falsecolour uvistray uvkm | vilstray vik resus] + vi] 6 label | visible-induced IR luminescence, stray light removed export (vilstray.Q47) fo) label |{] Save in folder: \\ Technical Imaging John Cupitt | workspace tests | Create Folder Places ”| Size | Modified 65346. 01. idas. LTIF 62 ee mais éz C\ Search BEI Ö1.idas (TIF —28.9MB 17/05/2013 sos Recently U... LTIF 28.9MB 17, 13 export (vikrn.11) @ Recently "2. 65346. 02. rg830. LTIF 105/20: Beyer "265346 03 dug11 I.TIF 28.8 MB 17/05/2013 || E Desktop "265346, 04 kv418-idas... 28.9MB Wednesday gs Local Disk "2. 65346_05_Ex.LED+tun... 28.9MB Thursday @ Dv0 Drive ... |[¥] TIFF ima [te image files (tif, *tif eti; *.tiff) 715,88 MB free in "F:\Technical Imaging\John Cupitt\workspace tests" 0 Increment filename CO Pinup [ease || & cancel (d Dil Figure 3-92 Version No. 1.0 178 Date : 14/10/2013
